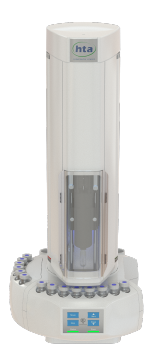

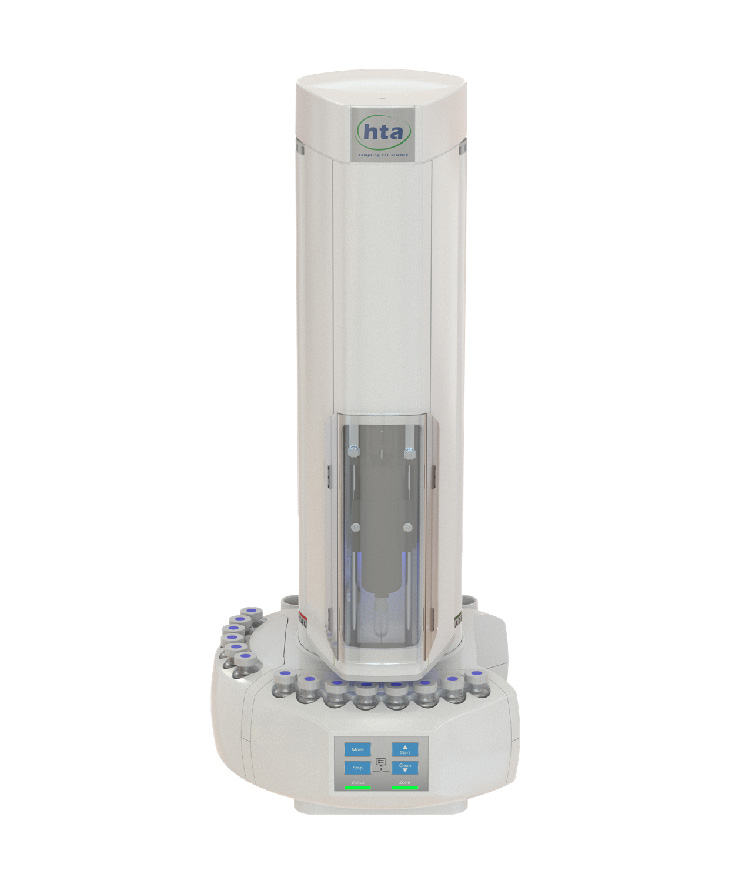

顶空自动进样器 2100H 产品型号：2100H

分析少量样品？通过满足您需求的理想尺寸的系统，来获得高精度、高性能顶空系统：2100H提供了自动化功能，可自动处理多达14个样品。

#环境分析/EPA　#材料分析 #添加物比例分析 #高分子材料 #有机合成 #药物检验 #气体分析

■ 操作简单
只需要最简易操作教学即可上手。简单易懂的控制盘使您只需按“开始”按钮即可开始分析。样品盘中的所有样本将被自动处理。 2100H随附的免费PC控件HTA Autosampler Manager可以完成自动进样器参数的快速设置，而所有常规操作都可以通过专用控制板进行管理（分析开始和样品加载）

■ 您需要的一切
标准版本包含了高级功能：系统完整性测试、渐进模式、可调整的样品量和样品瓶泄漏检查。入门级模块并不意味着HTA会降低功率！

■ 为什么需要远离手动顶空
2100H是成本和质量的有效替代手动顶空系统。手动进样虽然简单又便宜。它们也很繁琐，容易遭受人为操作错误，并且无法提供可靠且一致的数据。相比之下，自动化可确保一致，可靠的结果；它还使实验室人员腾出了更多精力来完成更多生产任务。这就是2100H应该成为您的顶空选择的原因。

不同型号比较	2100H	2000H	2000HT
Sample Capacity	14 samples: 20 or 10ml	42 samples: 20, 10 or 6ml	42 samples: 20, 10 or 6ml
Removable Rack	-	√	√
User Interface	Keypad	Touch Screen	Touch Screen
Oven Position(s)	1	6	3
Oven Temperature Range	Off; 40-150°C	Off; 40-170°C	Off; 40-300°C
Shaking Capability	YES (Sussultatory)	YES (Orbital)	YES (Orbital)
Programmable Injection Volume	√
Supported Headspace Syringe	1, 2.5 and 5ml
Software: HTA Autosampler Manager (Standard Version)	Included	Free trial (60 days)	Free trial (60 days)

Tray capacity
项目	规格
Syringe volume	2.5ml (standard); optional: 1 and 5ml
Cleaning system	Inert gas flush (inlet: 1/8”; max pressure: 1bar)
Maintenance	preventive counters; system integrity check4; predictive maintenance functionalities by AI
Electrical control	LAN and TTL; optional: RS232 (2000H)
Syringe area illumination	Yes
HT2000H/HT2000HT	42 vials (20ml); optional: 6 and 10ml (1 removable rack)
HT2100H	14 vials (20ml); optional: 10ml
Conditioning
Conditioning	1 (2100H) 6 (2000H) 3 (2000HT)
Oven temperature	off; 40-150°C (2100H) off; 40-170°C (2000H) off; 40-300°C (2000HT)
Shaking method	sussultatory (2100H) orbital (2000H and 2000HT)
Shaker speed	from very low to very high
Shaking cycles	on/off 0-9.9min
Incubation time	0-999min
Sampling
Syringe temperature	off; 40-150°C (2000H and 2100H) off; 40-150°C (2000HT)
Sample volume	steps of 0.01ml
Sample homogenization	up to 15
Sample speed	0.1-100ml/min
Injection
Injection speed	0.5-100ml/min
Pre/Post dwell time	0-99sec
Enrichment:	up to 15
Dwell time between injections	0-100min
Physical features
Dimensions (WxHxD)	280x640x320mm (2100H) 330x640x320mm (2000H and 2000HT)2
Weight	8.0kg (2100H) 10.0kg (2000H and 2000HT)
Power supply	100-240±10%Vac; 50-60Hz; 60W (2100H) 100-240±10%Vac; 50-60Hz; 120W (2000H and 2000HT)
