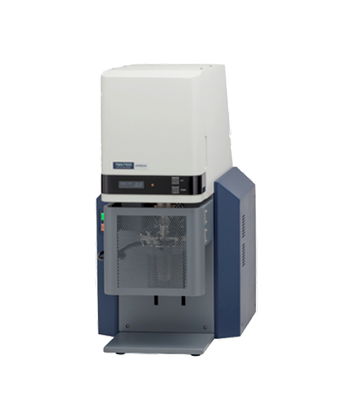

热机械分析仪 产品型号：TMA/SS 7100

TMA 7100 Specification
■ Temperature Range：-170 to 600℃
■ Sample Cylinder：quartz, Metal
■ Probe：Quartz Expansion Probe
Quartz Penetration Probe
Quartz Cone Probe
Quartz Tension Probe
Quartz Bending Probe
Metal Tension Probe
Volume Expansion Accessory
■ Probe supporting method：Cantilever
■ Measurement range：+/- 5mm
■ RMS noise / sensitivity：0.005 um / 0.01 um
■ Load range / Resolution：+/- 5.8 N / 9.8 uN
■ Scanning rates：0.01 to 100℃/min
■ Maximum sample dimensions：Expansion, Penetration : 10 (Ø) x 25 (L) mm
Tension : 5(W) x 1(T) x 25(L) mm
■ Sample length：Automated measurement
■ Atmosphere：Air, Inert gas, Vacuum (to 1.3Pa), Swelling measurement, Humidity control measurement
■ Stress Control Mode：
Constant：+/- 5.8N
Constant rate loading：9.8 x 10-2 to 9.8 x106 mN/min
Sinusoidal loading：0.001 to 1Hz
Combination：Maximum 40 steps
■ Strain Control Mode：
Constant：+/- 5000um
Constant rate strain loading：0.01 to 106 um/min
Sinusoidal strain Control：0.001 to 1Hz
Combination：Maximum 40 steps
■ Gas purge control：Gas Controller, Mass Flow Controller
■ Cooling unit：LN2 Dewar Vessel, Auto LN2 Gas Cooling Unit, Electrical Cooling Unit, Auto air Cooling Unit
■ Dimensions：390 (W) x 550 (D) x 740 (H) mm
